About 73% of U.S. homes constructed before 1980 use copper in part of their water supply system. That highlights the long-term importance of copper pipe fittings in modern and legacy plumbing systems. This guide explains the key copper fittings commonly found in plumbing. These fittings are used to join, redirect, and control the flow of water, gas, and refrigerant. You’ll encounter elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Click here for 5 8 Copper Tubing
Contractors and DIYers prefer copper for its durability, heat tolerance, and water quality benefits. When installed correctly, copper fittings can last decades. This makes them a cost-effective choice for many projects.
In this article, we will explain how to identify fittings by both function and size. It also compares soldered joints with mechanical connections. You’ll learn how to find compatible parts through trusted suppliers like Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Reasons To Choose Copper
For both residential and commercial plumbing, copper pipe fittings remain a preferred option. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
Benefits Of Copper
Copper is valued for its durability and malleability, which allows fittings such as elbows and tees to be formed easily without cracking. Its ability to withstand high temperatures makes it perfect for hot water supply and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. It can be joined using solder, press systems, compression, or push-fit methods, providing flexibility in projects.
Longevity And Corrosion Resistance
When installed properly, copper tubing can last 70 to 80 years. As copper oxidizes, it forms a protective patina that helps limit deeper corrosion and improve service life. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Where Copper Outperforms Other Materials
Copper surpasses many alternatives in hot-water systems, refrigeration lines, and high-pressure applications. For HVAC and refrigeration systems, pipe 5 8 and copper tube 5/8 are often used in refrigerant circuits for dependable performance under heat and pressure. Copper fittings can tolerate higher temperatures and retain rigidity under stress better than PVC or PEX. Compared with multilayer or composite pipes, copper is less vulnerable to impact damage and has a long, proven history in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | Strong tensile performance and wear resistance | Hot-water supply, boiler loops |
| Heat tolerance | Withstands high temperatures without softening | Water heaters and HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long supply runs in homes |
| Connection methods | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Typical sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits, tight commercial runs |
Common Copper Pipe Fittings For Supply Lines
A successful project depends in part on choosing the correct copper fittings. This guide covers essential fittings for water supply lines, including those for direction changes and service access. When planning, remember to consider pipe size, connection style, and material compatibility.

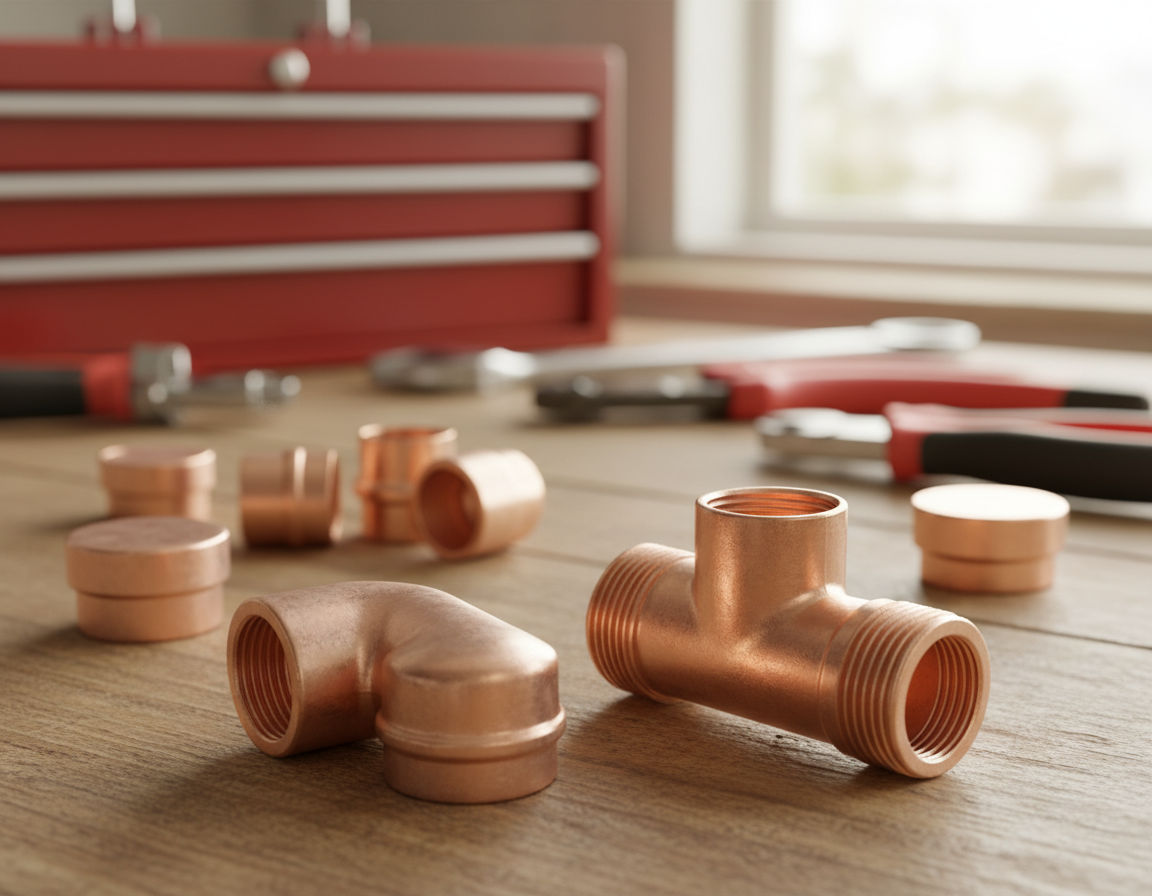

Elbows, Tees, And Crosses: Changing Direction And Branching
Elbows guide flow around corners and are available in 90°, 45°, and 22.5° configurations. They are essential when routing around obstacles or following wall lines. For three-way connections, tees divide or combine flow and are often found in kitchens and bathrooms. Crosses connect four directions, ideal for where systems meet.
You can find these fittings in multiple connection styles, such as sweat/soldered, press, and compression. Select the connection method that works best with your copper pipe connectors and the installer’s skill set.
Couplings, Adapters, And Unions For Joining And Service
Couplings are used to join two pieces of copper pipe with the same diameter. Reducing couplings handle different sizes. Adapters convert between materials and thread types, such as copper-to-brass or copper-to-PEX.
Unions allow for quick section separation for repairs or equipment service. They’re perfect for where a valve or fixture needs periodic removal. To prevent leaks, always ensure that unions and adapters match the pipe OD or nominal size.
Caps, Plugs, And Clean-Outs For Sealing And Access
Caps close off the end of a line, while plugs screw into fittings to seal branch openings. Both are often used during pressure testing and for temporary terminations. Clean-outs provide access to drain lines for maintenance and blockage removal.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Confirm whether the fitting size is referenced by nominal size, OD, or ID, because this is critical for 5 8 copper fittings and other sizes.
When planning a project, ensure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. Doing this helps avoid fitment issues and simplifies future maintenance.
Copper Compression And Push-To-Connect Connections
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. They are ideal when a soldering torch is impractical or when a quick fix is necessary. The following section covers how each system works, where each is appropriate, and what installation tips matter for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
Compression fittings form a seal by using a nut and a ferrule. When the nut is tightened, the ferrule compresses around the tube and bites into the copper. This method forms a leak-resistant joint without the need for heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
These joints work well across multiple sizes, including 5 8 copper pipe fittings. Because they can be disassembled when installed correctly, they are well suited to accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. They require no solder, no crimping, and no special tools. This simplicity makes them a favorite among DIYers and professionals working in confined spaces.
Common sizes, including 5/8 copper tube, are supported by these fittings. Many brands provide pressure and temperature ratings. It’s essential to match the fitting to the tubing type and follow the manufacturer’s depth guidelines for reliable performance.
Why These Fittings Beat Solder In Some Jobs
Compression and push-fit copper fittings eliminate the need for a torch, flux, and open flame. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They save time on emergency repairs and in situations with limited clearance.
It’s important to note that mechanical fittings might be more expensive per unit and have lower temperature limits than soldered joints. Before installing quick-connect fittings on hot-water or high-pressure lines, always check their ratings. Used correctly, these fittings can be a safe, flexible alternative to soldering in many plumbing jobs.
Sweat And Soldered Fittings For Copper Pipe
Sweat connections form a strong bond between pipe and fitting, using flux and filler metal. Brazing uses a higher level of heat and a different filler metal that melts above 840°F. It’s commonly used in refrigeration and HVAC joints. Both methods create durable, long-lasting joints when executed correctly.
Overview of techniques
In sweat copper fittings, solder fills the gap between the fitting and the copper tube. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The decision between these methods depends on the system requirements and local code rules.
Tools And Safety Gear
Key tools include a tube cutter, deburring tool, emery cloth or wire brush, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Step-By-Step Soldering Tips
- Cut the copper tube 5/8 section square and deburr the edge so it fits smoothly.
- Use emery cloth or a wire brush to clean both the pipe and fitting until bright copper is visible.
- After applying flux to the cleaned surfaces, assemble the joint and twist it slightly to distribute the flux.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Apply solder or brazing rod at the joint, then allow capillary action to draw the filler through the seam.
- Allow the joint to cool naturally, and then clean away soot and flux residue with a suitable cleaner.
When To Choose Soldered Fittings
Choose copper solder fittings when you need a permanent, dependable joint in potable-water systems and moderate-temperature applications. Brazing is generally better for HVAC or refrigeration systems where greater temperature resistance is required. Make sure that any work on 5/8 copper tubing or copper tube 5/8 lines complies with manufacturer requirements and code rules for pressure compatibility.
Important Practical Considerations
Skilled technique is essential to avoid cold joints and porosity. Inspect each joint for full solder coverage and test systems under pressure before insulation or concealment. Sweat copper fittings are a staple for many plumbing jobs, while brazing copper pipe is ideal for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For HVAC And Refrigeration
Refrigeration and HVAC systems need precise tubing and fittings to move refrigerant safely. Materials and connection types are chosen by technicians based on pressure, access for service, and code rules. Understanding common sizes and fitting styles helps avoid leaks and service headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. Before ordering parts, it is important to confirm whether the specification refers to nominal size or outside diameter (OD).
5 8 copper tube must match fittings sized for that outside diameter. Mismatched parts can lead to poor seals and unsafe joints. Manufacturer compatibility charts should be used when selecting copper pipe fittings refrigeration parts.
Uses For 5/8 Copper Pipe And 5/8 Refrigeration Tubing
Lines carrying refrigerant require consistent wall thickness and precise bends. For liquid lines and smaller suction runs, 5 8 copper refrigeration tubing is commonly suitable. Service valves, meters, and filter driers are often designed around 5/8 OD copper tubing.
Flare, Bite-Type, And Brazed Fittings For Refrigerant Lines Under High Pressure
A flare fitting seals by compressing the flared end of a tube under a flare nut. Where serviceability matters, such as at gauges and access panels, technicians often use flare fittings. For field service, flare joints can be tightened by hand.
When tightened, bite-type fittings use a ferrule that grips and bites into the tube wall. Installers favor bite-type fittings when flaring is difficult or space is limited. They provide quick assembly and strong vibration resistance in mobile applications.
A brazed fitting creates a strong, leak-resistant metallurgical bond. HVAC systems operating at high pressures or elevated temperatures often need brazed connections. For certain refrigerants and high-pressure circuits, codes and manufacturers may require brazing.
Sizing Notes: 5 8 Copper OD, ID, And How To Select Compatible Fittings
Before buying fittings, confirm the difference between 5/8 od copper tubing and 5/8 id pipe. Pipe with a 5/8 id has a smaller outside diameter than tubing labeled 5/8 OD. Checking both OD and ID prevents fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid and suction lines, service connections | Rare for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to ID-based plumbing standards |
| Installation Note | Check flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure Suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
When selecting parts, match the fitting specification to the tubing OD and choose copper pipe fittings refrigeration products that state compatibility with 5/8 od copper tubing. Keep a stock of flare fittings and bite-type fittings for field repairs. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
How To Choose The Right Copper Fitting: Material, Sizing, And Code Requirements
Selecting the right copper fitting requires precise measurement and an understanding of performance ratings. You must read labels carefully to determine whether they refer to outside diameter or nominal sizing. That step is critical if you want to avoid leaks and make sure the fitting matches the system.
Outside diameter is the sizing basis for many refrigeration and HVAC parts. For instance, 5 8 copper pipe od is common in refrigeration tubing. On the other hand, residential plumbing often employs nominal sizes based on internal diameter. You should always check the manufacturer’s notes on 5/8 in copper pipe sizing before purchasing.
When matching fittings to pipe, verify if the tubing is described as 5 8 id tube or 5 8 od tubing. Different fittings like compression, sweat, flare, and brazed require specific clearances and preparation. The fitting method should be selected according to the application and pressure level.
System pressure and temperature dictate the choice of material and joint type. Soldered or press fittings rated for higher temperatures are recommended for hot potable water. High-pressure refrigerant lines benefit from flare or brazed joints. Brass adapters work well when transitioning between copper and other metals.
Local plumbing codes also play a significant role. Before starting work, inspect local plumbing codes copper fittings requirements. Some areas mandate brazed joints for HVAC refrigerant or limit mechanical fittings in concealed spaces. NSF/ANSI or UPC certifications should be verified to meet code and warranty requirements.
To select the best copper fittings, purchase from trusted suppliers like Ferguson or Grainger and follow product instructions carefully. When there is any uncertainty, ask a licensed plumber or HVAC technician to confirm the correct fit and rating. This approach helps avoid costly rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing type | 5 8 copper pipe OD | High-pressure refrigerant applications | Fittings are usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing (nominal) | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fitting style | Often marked by tube OD or nominal ID | Retrofit work and quick repairs | Suitable for low-to-moderate pressure; follow torque specifications |
| Sweat/soldered fittings | Usually listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in some specs | Refrigeration and fuel lines | Do not mix flare and compression fittings unless they are rated for both |
| Required certifications | NSF/ANSI, UPC | All potable water systems | Required by many local plumbing codes copper fittings rules |
Use a detailed checklist: confirm sizing, select fittings for the correct temperature and pressure, verify certifications, and ensure proper installation. This helps you choose copper fittings that perform reliably and comply with local codes.
Installation Tips, Common Errors, And Maintenance For Copper Fittings
Preparation is key to avoiding failures. Following basic installation tips for copper fittings can greatly reduce leaks and rework. The way the system is assembled plays a major role in its long-term performance. This is true whether you’re working with a 5/8 od copper tube for HVAC lines or standard supply piping in a home.
Cutting, deburring, and cleaning pipe ends before assembly
Begin with a proper tube cutter so you get a square cut. Once the pipe is cut, remove burrs and copper shavings from the end and the pipe ID. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. That step is necessary so flux and solder can flow evenly. Without proper preparation, capillary action is weakened and leaks can result.
Proper Use Of Flux, Heat, And Solder; Avoiding Cold Joints And Leaks
Before assembling the joint, apply flux evenly to both mating surfaces. Next, heat the fitting. When soldering copper pipe, keep the flame moving to ensure uniform heat distribution. Apply solder to the heated seam so capillary action can draw it in. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Teflon tape, thread sealants for threaded copper fittings, and avoiding overtightening
On threaded copper fittings, apply Teflon tape or a compatible pipe thread sealant to the male threads. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Never overtighten, as excessive torque can strip threads or crack fittings. With compression fittings, follow the manufacturer’s turn count or torque specification to avoid crushing the ferrule.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. Fittings should be replaced when leaks continue after tightening, when corrosion is visible, or when a system is upgraded to current standards.
Common mistakes include neglecting cutting, deburring, and cleaning, mixing OD and ID sizing conventions, overheating during soldering, and ignoring manufacturer pressure limits. To maintain reliable systems, always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions.
Conclusion And Final Guidance
In plumbing and HVAC, copper pipe fittings stand out for their durability, resistance to heat, and long lifespan. The specific job determines whether soldered joints, compression fittings, push-to-connect options, flare fittings, or brazed assemblies are the best choice. It is critical to match both the size and type of fitting correctly. Be careful with OD versus ID measurements, such as 5/8 sizing, so you do not make fitment errors.
When selecting copper fittings, ensure they meet pressure ratings, material standards, and local codes. For quality products and support, turn to a trusted wholesale distributor like Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
Effective preparation and installation are key to a lasting system. The process should begin with cutting, deburring, and cleaning the pipe ends. After that, use the recommended methods for fluxing, heating, or mechanical assembly. Regular inspections and timely replacement of worn fittings are essential for maintaining a leak-free, safe system.
